MOUSETRAP LONG JUMP

  • Goal:  Make your mousetrap "jump" as far as possible, horizontally, powered only by its own spring.
  • Rules/Constraints/Options:
    • Maximum Team Size = 2 students
    • The mousetrap must begin its jump inside a 1 foot square, delineated by blue tape.  At least one original piece of the mousetrap must be touching floor when the jump is triggered.  The jump distance will be the closest distance between a part (original or added-on) of the mousetrap and a part of the blue square tape, after the mousetrap has come to rest.
    • Additional material may be added to the mousetrap with glue or string, but no original part of the mousetrap may be removed or modified (other than the staple that holds the arm bar in place when the trap is in its packaging).
    • The sole allowed source of energy for the jump is the mouse trap spring.  No other pushes or pulls are allowed.
    • The jump must be triggered by depressing the "bait pedal" in the manner intended by the manufacturer -- except that you may use an inanimate object to depress the bait pedal.
    • During its jump (and immediately before the jump -- during triggering), the mousetrap may be in direct contact with objects other than the floor, but those objects may not include a human particpant or their clothing. A contestant may, however, hold an object in place (e.g. by standing on it), and that object may be in contact with the mousetrap. But the contestant may not provide energy to the mousetrap by moving said object.
    • Contestants may not attach (e.g. with glue) materials to the classroom itself or its furniture.
  • Video showing how to set and trigger the mousetrap.







Examine the mercury barometer on the right.

1.  Do you understand how it works?

2.  If you were given some mercury, a long test tube, and a bowl, could you make one? [Unfortunately, Hg is toxic, so if you find a bunch, please don't actually try this.]

3.  Why is the vacuum at the top important?  What is a vacuum?

4.
If this barometer were made using water instead of mercury, would the tube need to be longer or shorter?

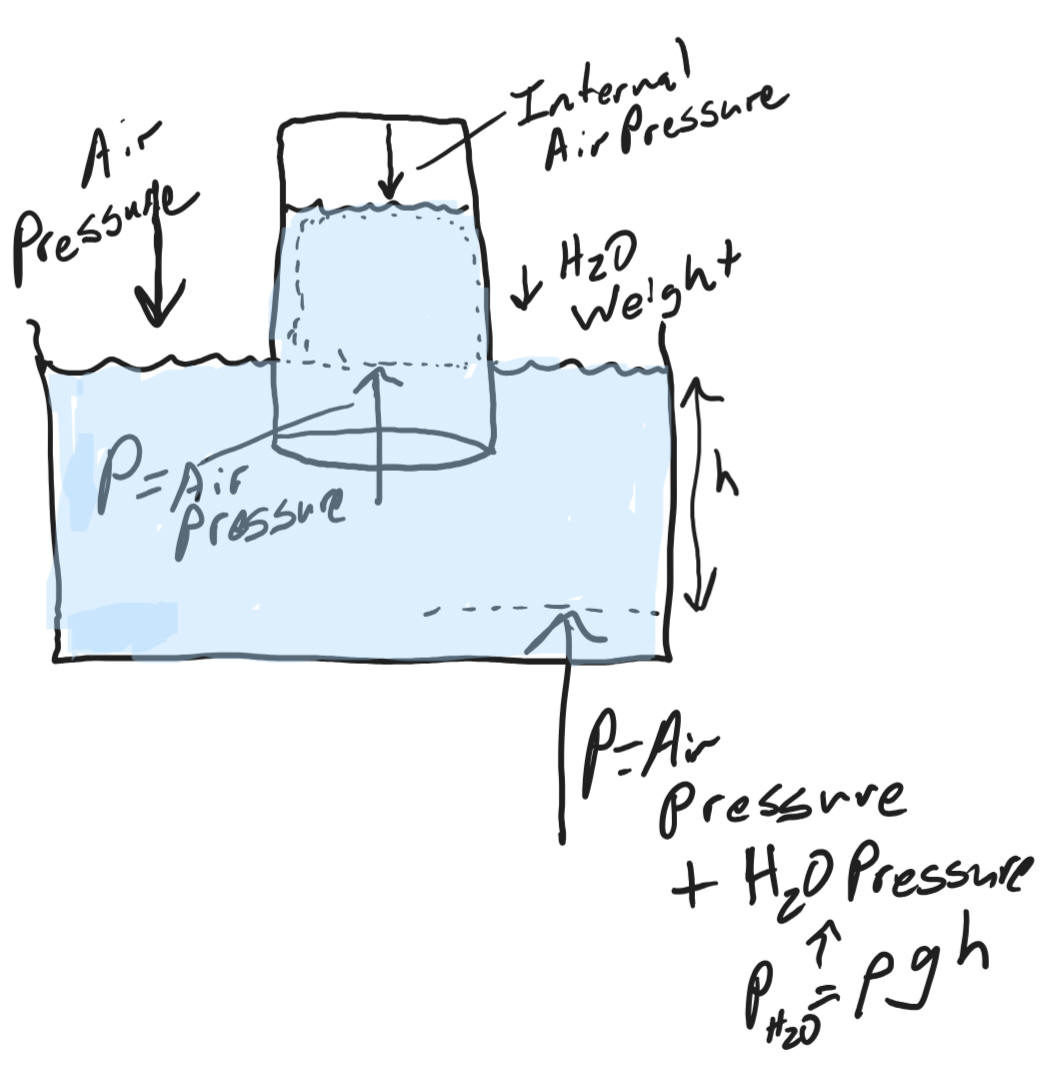

  • Why can we turn a jar upside down in water and lift the water level, like this...

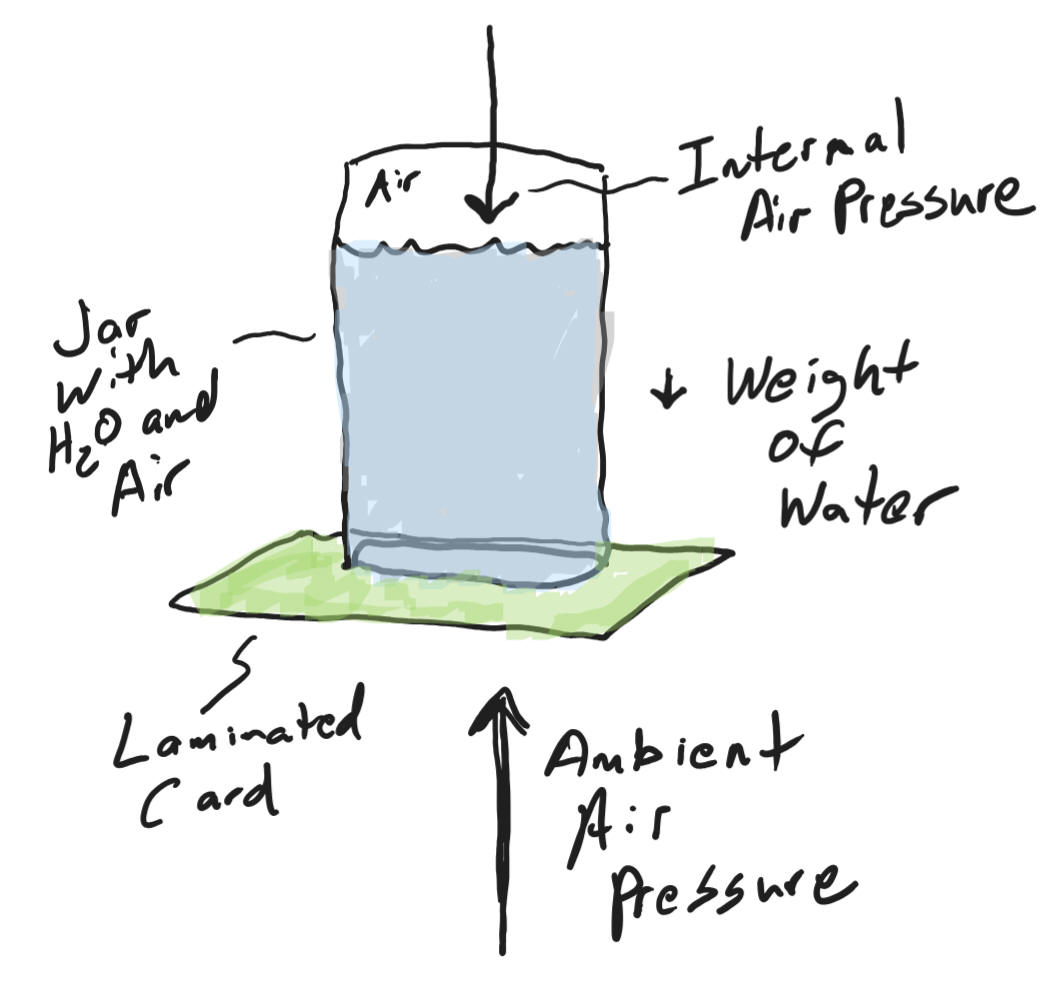

  •  What keeps the lid on the jar?
Class 9   Friday, 9/18/2015

Warm-Up:

  1. Do things move from areas of high pressure to areas of low pressure, or do they move from low pressure to high pressure?  Can you support your answer with an example?

  2. Do you know how to siphon?

  3. Do you know how siphoning works?

  4. Why won't siphoning work on the moon?

  5. What is a "water level?"

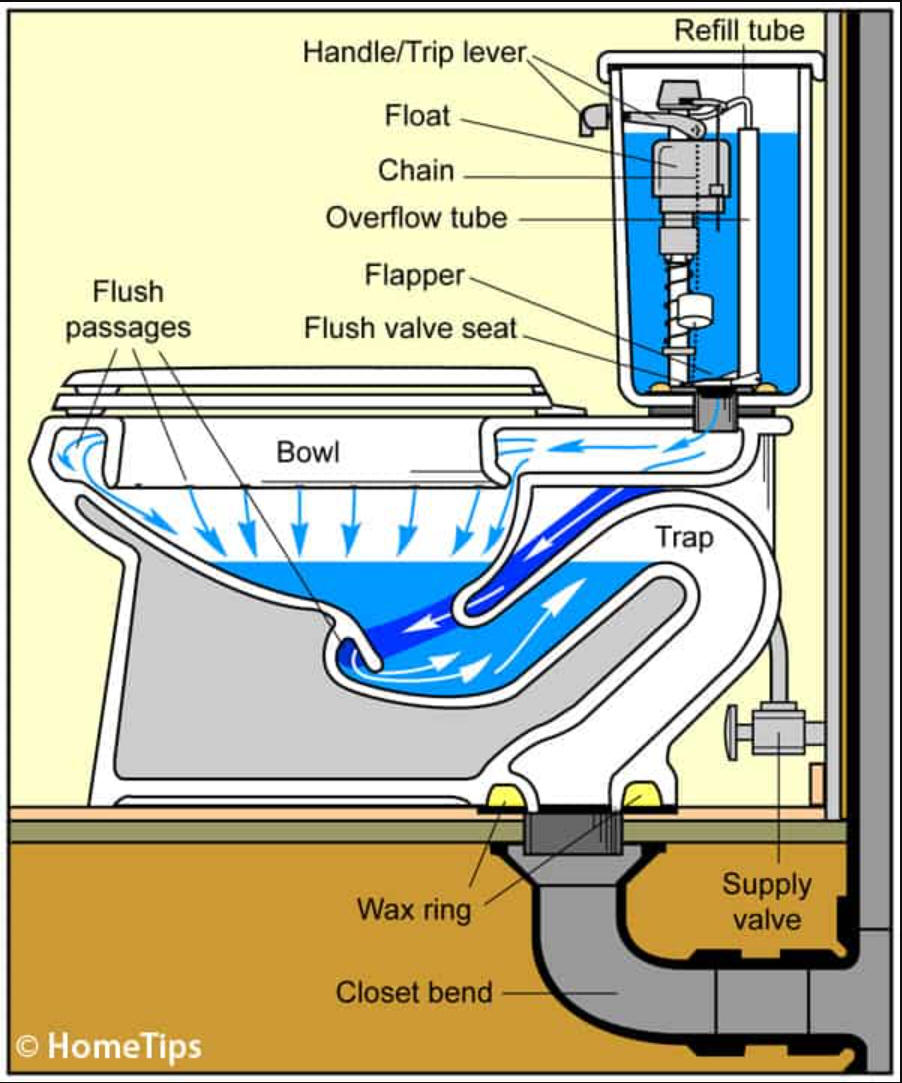

  6. How does a toilet work?


  • Bernoulli Ball
  • Adiabatic Change
  • Balloon Trick
  • Hovercraft
  • Shoot Stuff
